Product number:
049000-10|S10016
Manufacturer:
C + P GmbH & Co. KG
EAN:
4067521943359
Delivery time:
ca. 4 Weeks

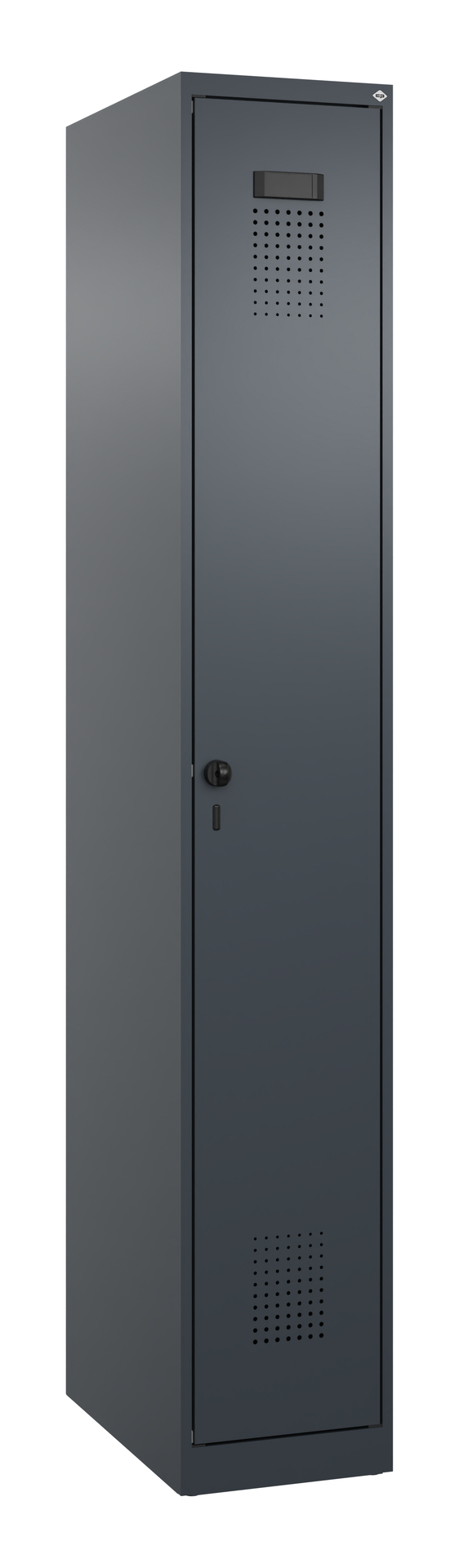

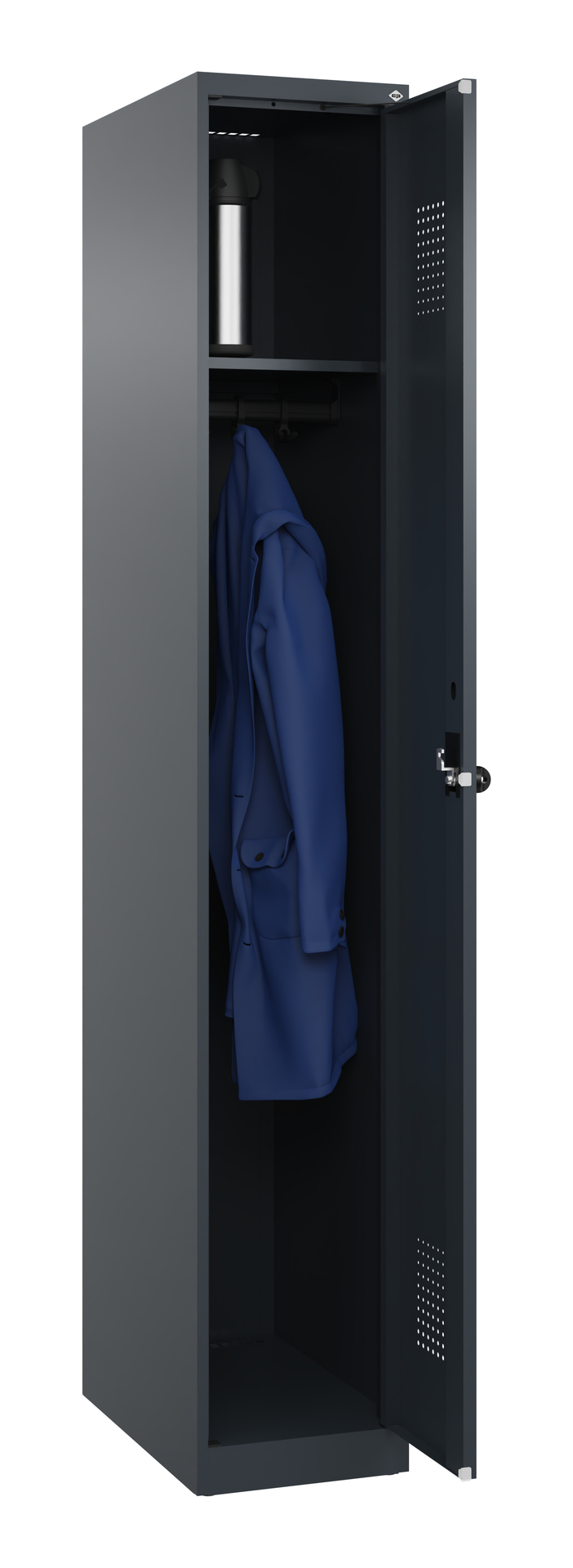

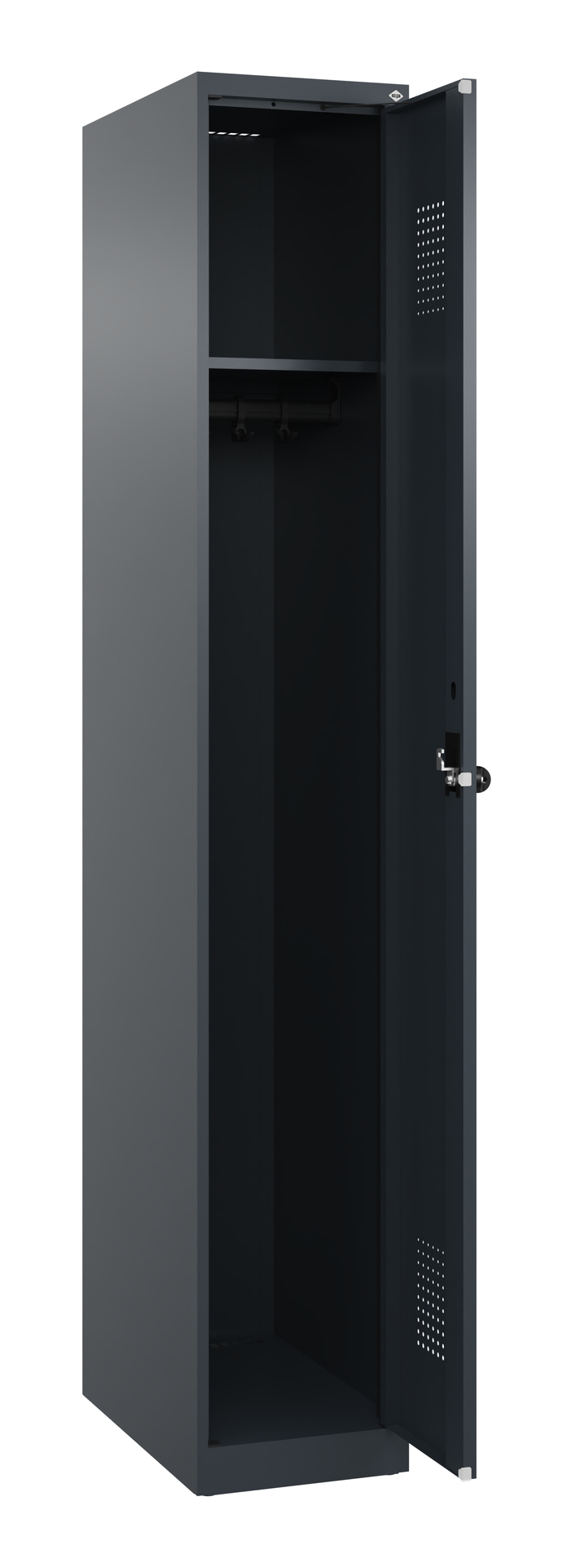

C+P lockers, Evolo PLUS, 1 compartment, 1850x300x500mm, 7016/7016
Summary
CONFIGURATOR
- Number of compartments: 1
- compartment width: 300
- lock: Safety turning bolt
- Color:

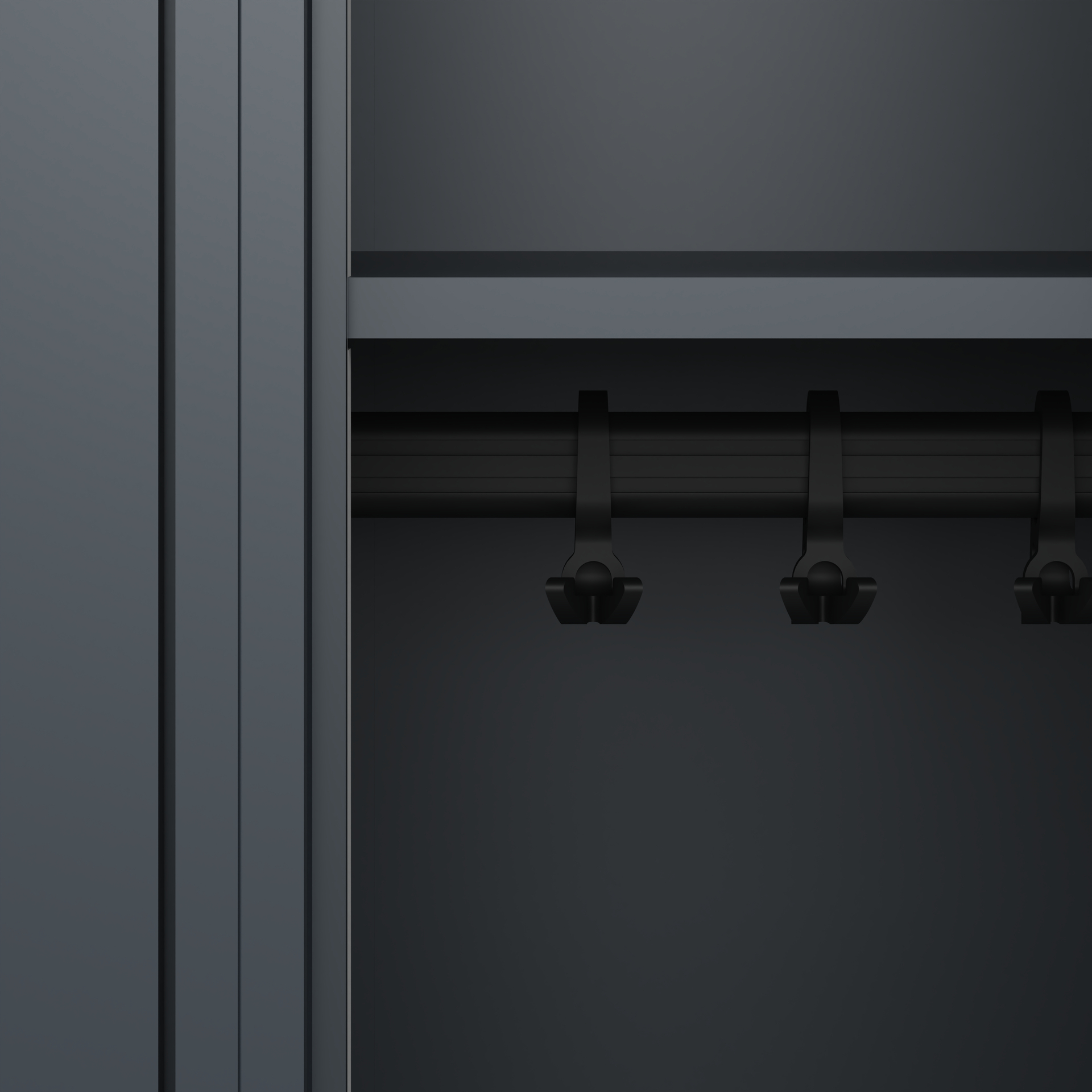

locker Evolo PLUS, 1 compartment, compartment width 300 mm, sturdy steel construction body with high-quality enamel coating for high UV and corrosion resistance, particularly burglar-proof construction in accordance with level C as per DIN 4547, with rear louvered openings at the top and bottom, 1 storage shelf inside, 1 sturdy changing room rail made of oval profile with 3 anti-rotation double sliding hooks incl. system holder underneath, With floor gliders for practical cabinet and floor protection, Door opening limiter 90 degrees, as protection against overstretching the door, Door(s) hinged on the right, Steel door(s) with soft stop and closed side profiles for maximum stability, with easy-to-clean ventilation hole pattern at the top and bottom, mounting in sturdy bolt hinges, 1 Ergonomic safety turning bolt for padlocks with bolt size 6 to 8 mm, incl. door protection, 1 Plastic label holder, black, self-adhesive, incl. transparent plastic cover and white label for individual labeling, Dimensions (H x W x D): 1850 x 300 x 500 mm, Color: RAL 7016 Anthracite grey, Doors: RAL 7016 Anthracite grey
Product advantages:
Product advantages:
| + | Body with ventilation openings at the top and bottom for optimum air circulation |
| + | Doors extremely torsion resistant due to closed side profiles |

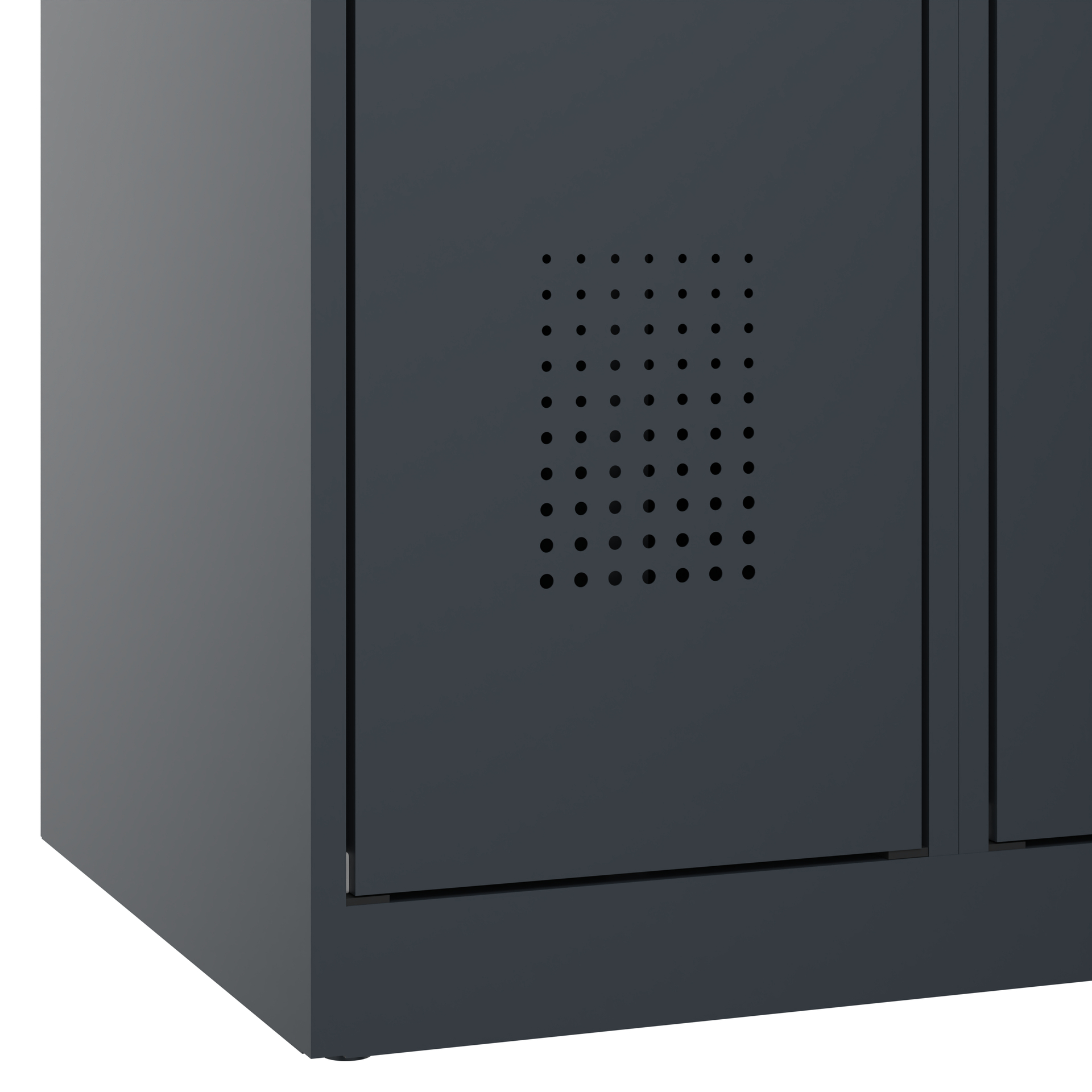

| + | Fronts additionally with easy-to-clean ventilation hole pattern for even more effective ventilation |
| + | Door opening limiter to protect the door from overstretching and from overlapping with the usable space of the neighboring cabinet |
| + | Increased corrosion protection thanks to zinc-plated locker base and aluminum floor gliders |
| + | Level adjustment for easy compensation of uneven floors |

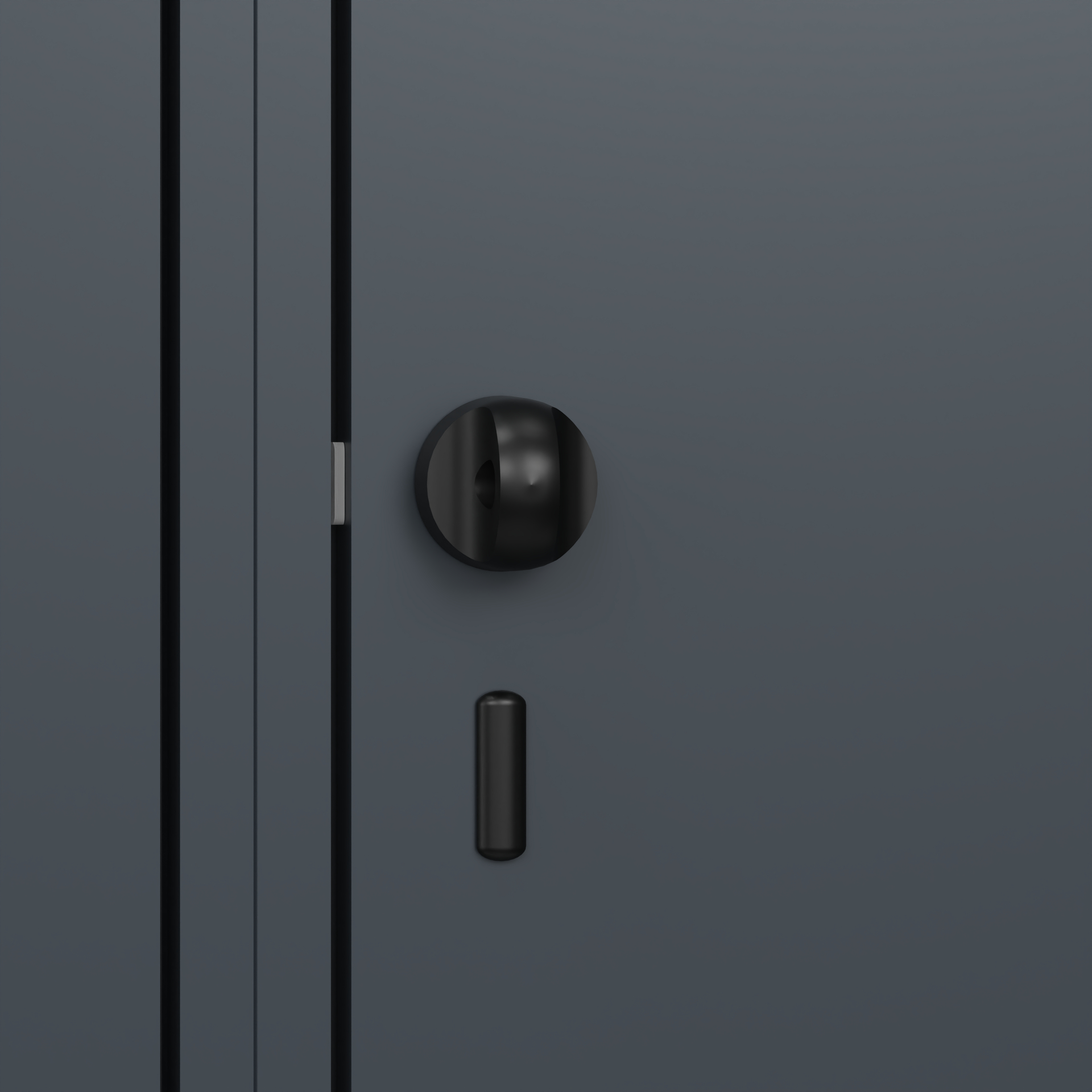

| + | Safety turning bolt latch for padlock, ergonomically shaped, turns when closed and thus prevents breaking open by over-turning |
| + | Particularly burglar-resistant construction in accordance with level C of DIN 4547 |
RFID locks
Pincode locks
Mechanical locks
Matching accessories
Product information "C+P lockers, Evolo PLUS, 1 compartment, 1850x300x500mm, 7016/7016"
locker Evolo PLUS, 1 compartment, compartment width 300 mm, sturdy steel construction body with high-quality enamel coating for high UV and corrosion resistance, particularly burglar-proof construction in accordance with level C as per DIN 4547, with rear louvered openings at the top and bottom, 1 storage shelf inside, 1 sturdy changing room rail made of oval profile with 3 anti-rotation double sliding hooks incl. system holder underneath, With floor gliders for practical cabinet and floor protection, Door opening limiter 90 degrees, as protection against overstretching the door, Door(s) hinged on the right, Steel door(s) with soft stop and closed side profiles for maximum stability, with easy-to-clean ventilation hole pattern at the top and bottom, mounting in sturdy bolt hinges, 1 Ergonomic safety turning bolt for padlocks with bolt size 6 to 8 mm, incl. door protection, 1 Plastic label holder, black, self-adhesive, incl. transparent plastic cover and white label for individual labeling, Dimensions (H x W x D): 1850 x 300 x 500 mm, Color: RAL 7016 Anthracite grey, Doors: RAL 7016 Anthracite grey
Product advantages:
Product advantages:
| + | Body with ventilation openings at the top and bottom for optimum air circulation |
| + | Doors extremely torsion resistant due to closed side profiles |
| + | Fronts additionally with easy-to-clean ventilation hole pattern for even more effective ventilation |
| + | Door opening limiter to protect the door from overstretching and from overlapping with the usable space of the neighboring cabinet |
| + | Increased corrosion protection thanks to zinc-plated locker base and aluminum floor gliders |
| + | Level adjustment for easy compensation of uneven floors |
| + | Safety turning bolt latch for padlock, ergonomically shaped, turns when closed and thus prevents breaking open by over-turning |
| + | Particularly burglar-resistant construction in accordance with level C of DIN 4547 |
| Adjustment travel level adjustment: | 25 |
|---|---|
| Attachment Labeling: | self-adhesive |
| Body color: | RAL 7016 anthracite gray |
| Body surface: | varnished |
| Body ventilation: | Perforated strip in the wardrobe base/head unit |
| Brand: | Evolo PLUS |
| Checkroom height: | 1325 |
| Country of origin: | EN |
| Customs TariffNo_DE: | 94031091 |
| Depth: | 500 |
| Door material: | Steel |
| Door opening angle: | 90 |
| Door surface: | varnished |
| Front color: | RAL 7016 anthracite gray |
| Front version: | Hinged doors |
| GS tested safety: | GS_TUV_Thueringen |
| Guarantee: | 10 years |
| Height: | 1850 |
| Inner depth: | 477 |
| Inner width other: | 298 |
| Internal height of lower compartments: | 1420 |
| Internal height of top compartment: | 365 |
| Labeling material: | Made of plastic |
| Material changing room rails: | Made of plastic |
| Material clothes hooks: | Made of plastic |
| Mounting front: | bolt hinge |
| Number of clothes hooks/person: | 3 |
| Number of compartments: | 1 |
| Number of storage shelves: | 1 |
| Opening dimensions door (height): | 1749 |
| Opening dimensions door (width): | 240 |
| Profile changing room rails: | oval |
| Safety when setting off: | Level C according to DIN 4547 |
| Substructure: | Floor glider |
| Suitability for wall installation: | Yes |
| Tipping dimension: | 1916 |
| Total internal height: | 1787 |
| Width: | 300 |
| changing room rail: | fixed |
| compartment width: | 300 |
| delivery condition: | mounted |
| door opening limiter: | Yes |
| for bolt size: | 6-8 |
| front stop 2: | Hinged on the right |
| key number: | Bolt |
| labeling: | label holder |
| lock: | Safety turning bolt |
| series: | Evolo PLUS |
| storage shelf: | fixed |
