Product number:
049000-20B|S10020
Manufacturer:
C + P GmbH & Co. KG
EAN:
4067521948064
Delivery time:
ca. 6 Weeks

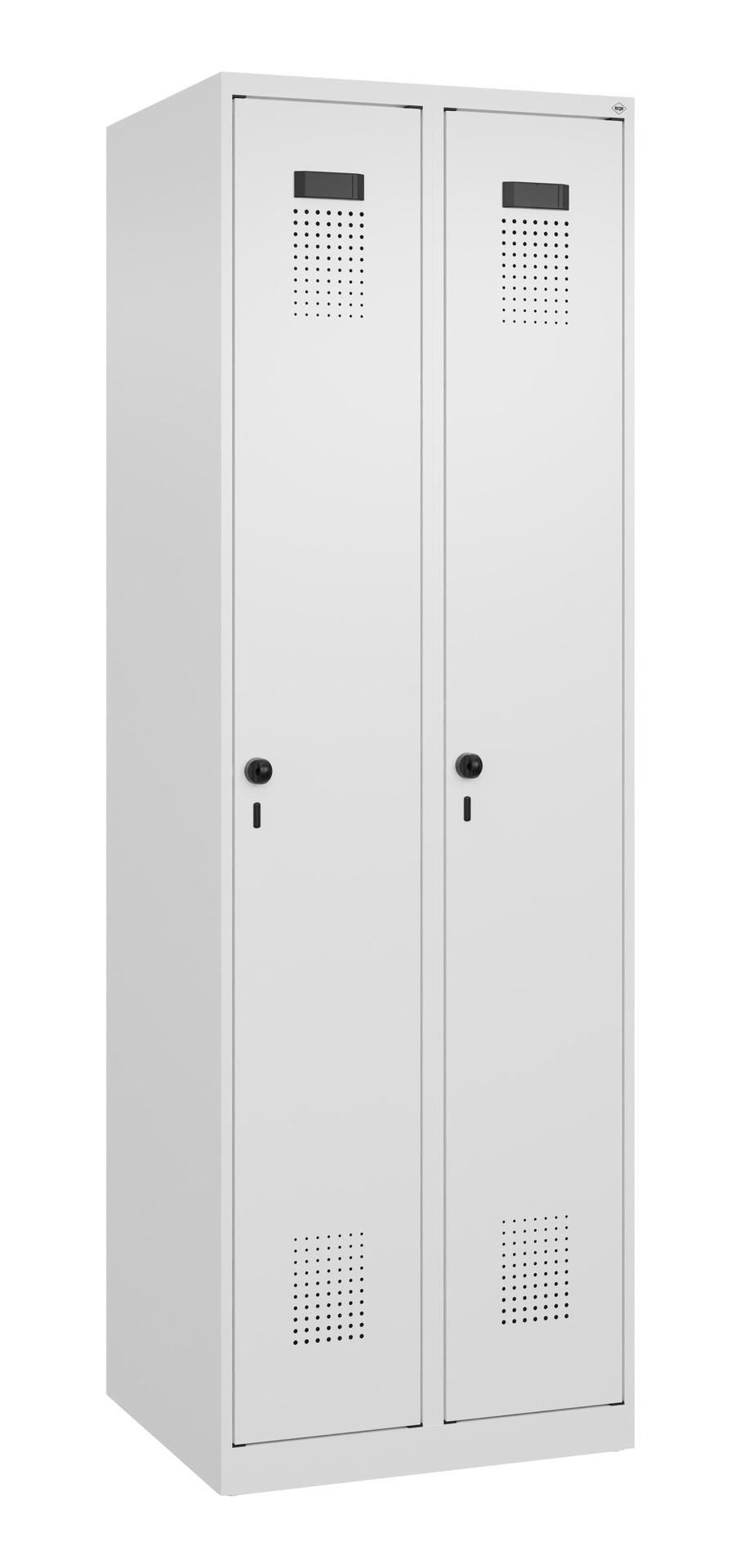

C+P storage lockers, Evolo PLUS, 2 compartments, 1850x600x500mm, 9016/9016
Summary
CONFIGURATOR
- compartment width: 300
- lock: Safety turning bolt
- Color:

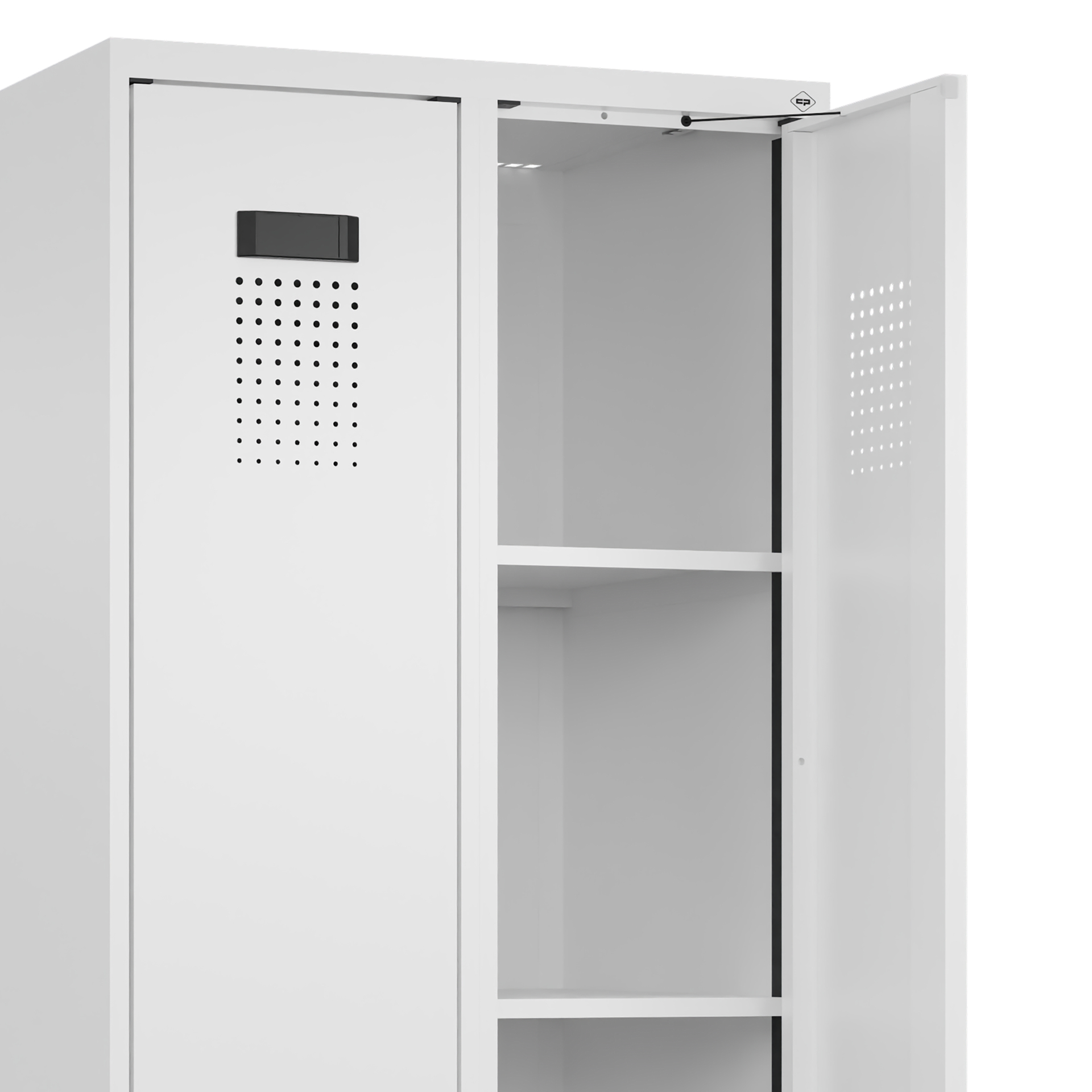

storage solutions Evolo PLUS, 2 compartments, compartment widths 300 mm, body made of sturdy steel construction with high-quality enamel coating for high UV and corrosion resistance, particularly burglar-resistant construction in accordance with level C as per DIN 4547, with rear louvers at the top and bottom, 4 shelves inside per compartment, doors hinged on the right, With floor gliders for practical cabinet and floor protection, Door opening limiter 90 degrees, as protection against overstretching the door, Door(s) hinged on the right, Steel doors with soft stop and closed side profiles for maximum stability, with easy-to-clean ventilation hole pattern at the top and bottom, mounting in sturdy bolt hinges, 2 Ergonomic safety turning bolt for padlocks with bolt size 6 to 8 mm, incl. door protection, 2 Plastic label holder, black, self-adhesive, incl. transparent plastic cover and white label for individual labeling, Dimensions (H x W x D): 1850 x 600 x 500 mm, Color: RAL 9016 Traffic white, Doors: RAL 9016 Traffic white
Product advantages:
Product advantages:
| + | Body with ventilation openings at the top and bottom for optimum air circulation |
| + | Doors extremely torsion resistant due to closed side profiles |

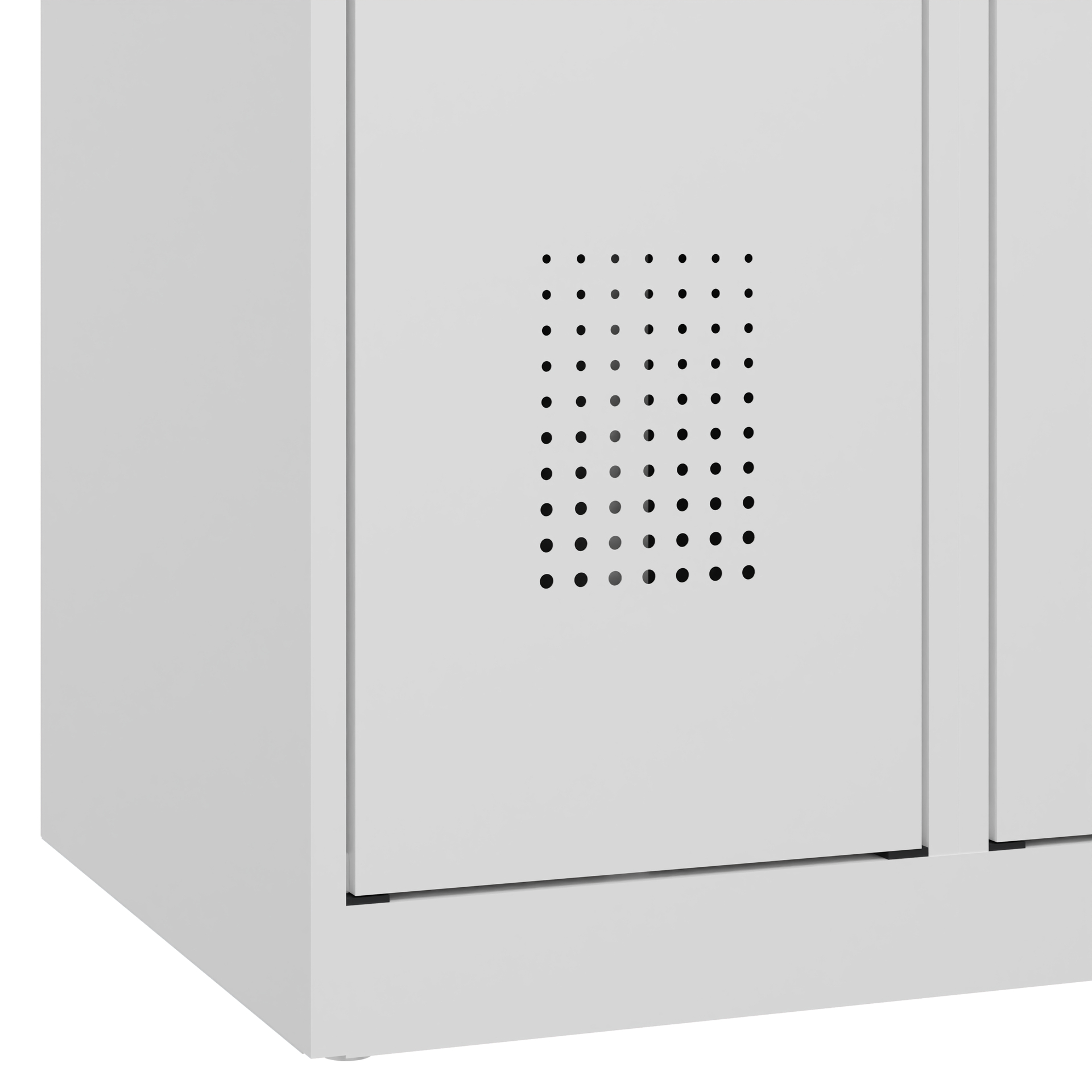

| + | Fronts additionally with easy-to-clean ventilation hole pattern for even more effective ventilation |
| + | Door opening limiter to protect the door from overstretching and from overlapping with the usable space of the neighboring cabinet |
| + | Increased corrosion protection thanks to zinc-plated locker base and aluminum floor gliders |
| + | Level adjustment for easy compensation of uneven floors |

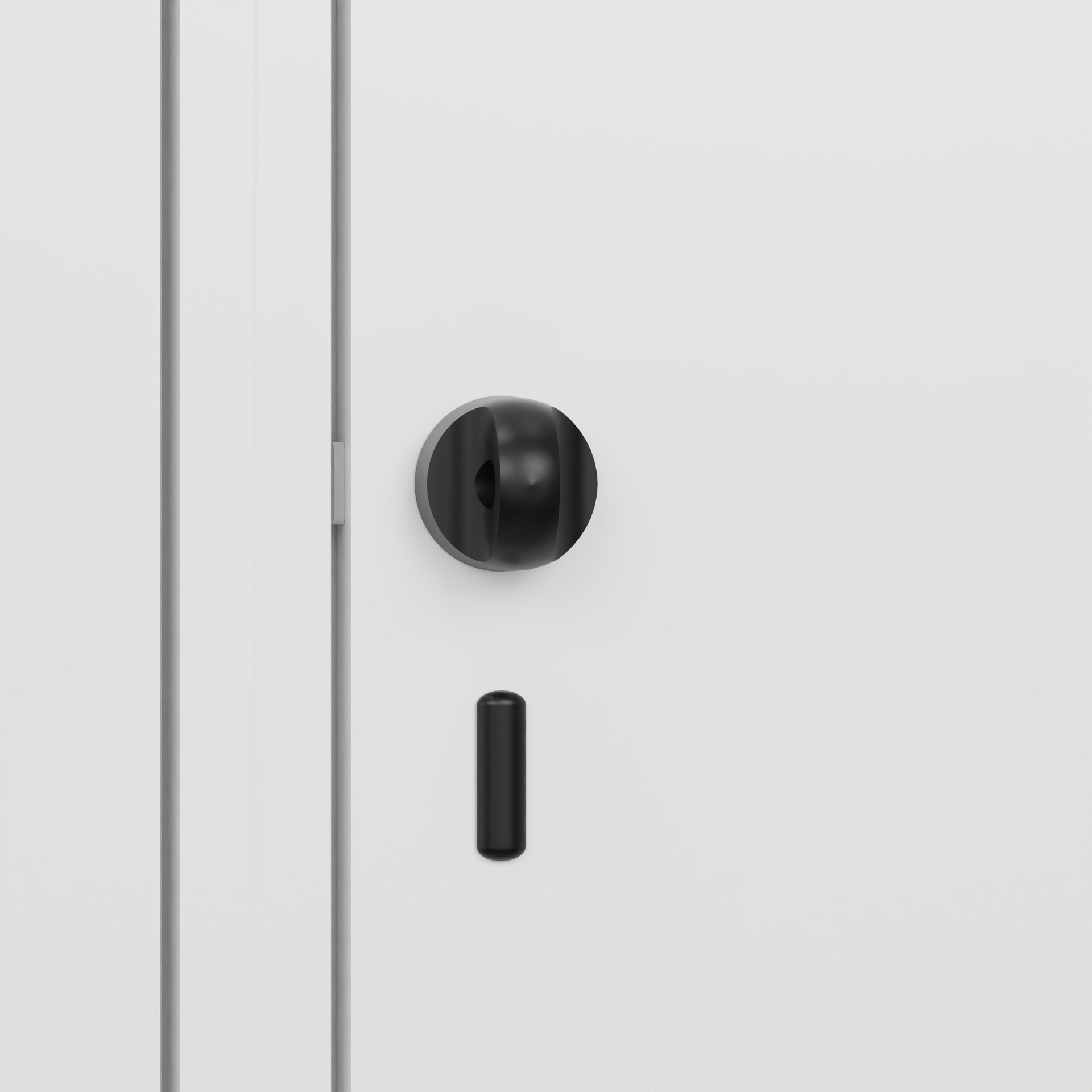

| + | Safety turning bolt latch for padlock, ergonomically shaped, turns when closed and thus prevents breaking open by over-turning |
| + | Particularly burglar-resistant construction in accordance with level C of DIN 4547 |
RFID locks
Pincode locks
Mechanical locks
Suitable accessories
Product information "C+P storage lockers, Evolo PLUS, 2 compartments, 1850x600x500mm, 9016/9016"
storage solutions Evolo PLUS, 2 compartments, compartment widths 300 mm, body made of sturdy steel construction with high-quality enamel coating for high UV and corrosion resistance, particularly burglar-resistant construction in accordance with level C as per DIN 4547, with rear louvers at the top and bottom, 4 shelves inside per compartment, doors hinged on the right, With floor gliders for practical cabinet and floor protection, Door opening limiter 90 degrees, as protection against overstretching the door, Door(s) hinged on the right, Steel doors with soft stop and closed side profiles for maximum stability, with easy-to-clean ventilation hole pattern at the top and bottom, mounting in sturdy bolt hinges, 2 Ergonomic safety turning bolt for padlocks with bolt size 6 to 8 mm, incl. door protection, 2 Plastic label holder, black, self-adhesive, incl. transparent plastic cover and white label for individual labeling, Dimensions (H x W x D): 1850 x 600 x 500 mm, Color: RAL 9016 Traffic white, Doors: RAL 9016 Traffic white
Product advantages:
Product advantages:
| + | Body with ventilation openings at the top and bottom for optimum air circulation |
| + | Doors extremely torsion resistant due to closed side profiles |
| + | Fronts additionally with easy-to-clean ventilation hole pattern for even more effective ventilation |
| + | Door opening limiter to protect the door from overstretching and from overlapping with the usable space of the neighboring cabinet |
| + | Increased corrosion protection thanks to zinc-plated locker base and aluminum floor gliders |
| + | Level adjustment for easy compensation of uneven floors |
| + | Safety turning bolt latch for padlock, ergonomically shaped, turns when closed and thus prevents breaking open by over-turning |
| + | Particularly burglar-resistant construction in accordance with level C of DIN 4547 |
| Innenhöhe Gefach mitte: | 350 |
|---|---|
| Adjustment travel level adjustment: | 25 |
| Attachment Labeling: | self-adhesive |
| Body color: | RAL 9016 Traffic white |
| Body surface: | varnished |
| Body ventilation: | Perforated strip in the wardrobe base/head unit |
| Brand: | Evolo PLUS |
| Country of origin: | EN |
| Customs TariffNo_DE: | 94031091 |
| Depth: | 500 |
| Door material: | Steel |
| Door opening angle: | 90 |
| Door surface: | varnished |
| Front color: | RAL 9016 Traffic white |
| Front version: | Hinged doors |
| GS tested safety: | GS_TUV_Thueringen |
| Guarantee: | 10 years |
| Height: | 1850 |
| Inner depth: | 477 |
| Internal height of lower compartments: | 368 |
| Internal height of top compartment: | 365 |
| Labeling material: | Made of plastic |
| Mounting front: | bolt hinge |
| Number of compartments: | 2 |
| Number of storage shelves: | 8 |
| Opening dimensions door (height): | 1749 |
| Opening dimensions door (width): | 240 |
| Safety when setting off: | Level C according to DIN 4547 |
| Substructure: | Floor glider |
| Suitability for wall installation: | Yes |
| Tipping dimension: | 1916 |
| Total internal height: | 1787 |
| Width: | 600 |
| compartment width: | 300 |
| delivery condition: | mounted |
| door opening limiter: | Yes |
| for bolt size: | 6-8 |
| front stop 2: | Hinged on the right |
| key number: | Bolt |
| labeling: | label holder |
| lock: | Safety turning bolt |
| series: | Evolo PLUS |
| storage shelf: | fixed |
C + P wardrobes and lockers: Perfection right down to the last detail
At C + P, you not only have a wide selection of different lock types; you can also freely combine them with any steel locker of your choosing. Let us help you create the perfect locker solution for your unique, personal use case.With C + P, you can choose between a variety of cabinet types: from SmartLockers and clothes lockers to storage cabinets and Z lockers. You’re sure to find the right solution and expert advice at C + P.
We are especially proud of our customized cabinet and locker solutions for specific occupational groups and highly demanding applications. For instance, our product range also includes special fire service lockers, models with a built-in charging function for electrical devices or practical school lockers for all types of valuables.
C + P steel lockers: Lockers and wardrobes from the market leader
A C + P steel locker is the perfect solution for the secure storage and safekeeping of the many personal items we all carry around with us on a daily basis in both our personal and professional lives. There are always instances in which valuables or clothing must be stored and protected – for example, in changing rooms, staff and break rooms or public buildings.
Customized solutions for every requirement
Our high-quality metal lockers are perfect for these situations. Depending on the location and space required, our product range offers the right models for almost every purpose. What’s more, we can customize and design all of our lockable lockers based on your individual preferences and equip them with a locking system that is tailored to your requirements.
